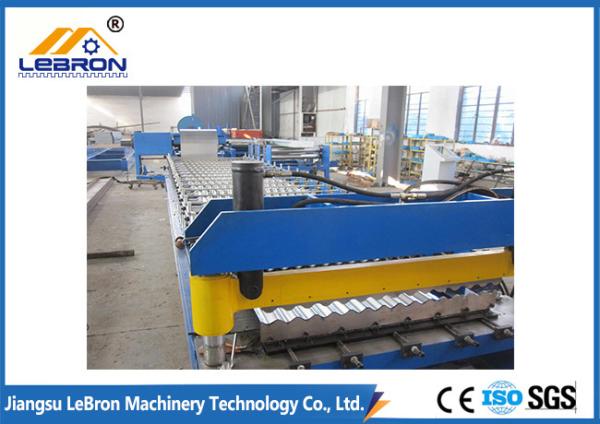

    1250mm 5.5KW Mitsubishi PLC Corrugated Sheet Making Machine

    Ask Lasest Price
    Brand Name : Lebron-Machinery
    Model Number : YX18-78.2-1017/860
    Certification : ISO9001:2008
    Price : USD8500~USD15000 per Set
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 30 Sets per Month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    1250mm 5.5KW Mitsubishi PLC Corrugated Sheet Making Machine

    1. Description of Corrugated Sheet Making Machine


    A Corrugated Roofing Sheet Making Machine is a common metal roll forming equipment that produces corrugated Metal Roofing and Siding Panels.


    Generally, one Corrugated Roofing Sheet Making Machine can produce sinusoidal sheets for roofing and siding panels with 762/838/1080 effective widths, 76.2mm wave distance and 18mm wave height. It’s worth to repeat that one corrugated sheet roll forming machine can make all above metal sheets.


    2. Main Technical Parameters of Corrugated Sheet Roll Forming Machine


    No.ItemDescription
    1Suitable Raw MaterialGI, GL, PPGI, PPGL Coil
    2Thickness0.3mm ~ 0.8mm
    3Width914mm ~ 1250mm
    4Yield Strength235Mpa ~ 550 Mpa
    5Forming Station16 ~ 22 stations
    6Diameter of ShaftDia 70mm
    7Roller MaterialNo. 45 steel, quenched, coated with 0.05mm chrome
    8Cutter MaterialC12 Steel, quenched, coated with 0.05mm chrome
    9Main Power5.5 Kw
    10Hydraulic Station4 Kw
    11Voltage380V/50Hz/3Phase
    12Control SystemPLC Control System

    3. Main Components of Corrugated Sheet Roll Forming Machine


    NoNameQuantity
    15 Tons Manual Decoiler1 Set
    2Main machinePre-cutting device1 Set
    Feeding device1 Set
    Roll forming system1 Set
    Post cutting device1 Set
    Hydraulic system1 Set
    3Electric control system1 Set
    4Receive Table2 Sets

    4. Electric Appliances


    1). Frequency converter: Mitsubishi Brand

    2). Computer PLC: Mitsubishi Brand

    3). Touch Screen: Mitsubishi Brand

    4). Low Voltage Apparatus: Schneider Brand

    5). Encoder: Mitsubishi Brand

    6). Hydraulic Pump Station Motor Power: 2.2 Kw

    7). Hydraulic Oil Pump type: YBI-10

    8). Hydraulic Valve: Beijing Huade Brand
