    High Quality Fully Automatic C Purlin Roll Forming Machine High Speed High Capacity

    Ask Lasest Price
    Brand Name : Lebron-Machinery
    Model Number : C80-300
    Certification : ISO 9001: 2008
    Price : USD22000~40000 per Set (Negotiate)
    Payment Terms : L/C, T/T
    Supply Ability : 25 Sets per Month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    High Quality Fully Automatic C Purlin Roll Forming Machine High Speed High Capacity

    High Quality Fully Automatic C Purlin Roll Forming Machine High-Speed High Capacity


    1. Description of C purlin roll forming machine


    C purlin production process: use the steel strip as the raw material, the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the significant stress structure of large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel support the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.


    The c purlin which was produced by the C purlin roll forming machine can be used for the significant stress structure of large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel support the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

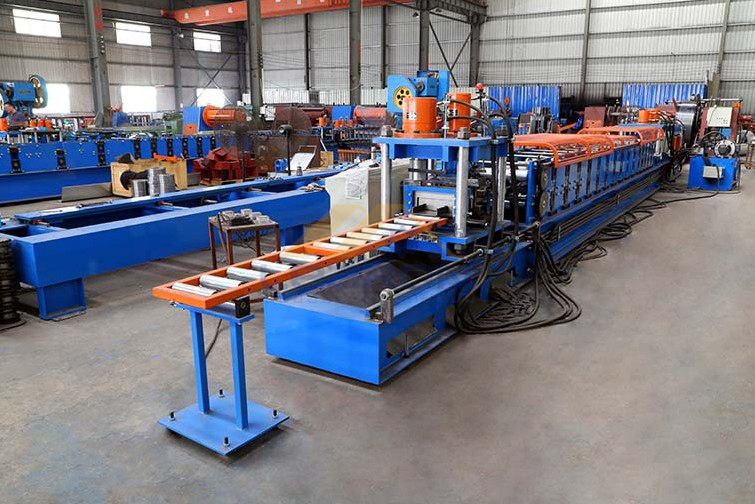

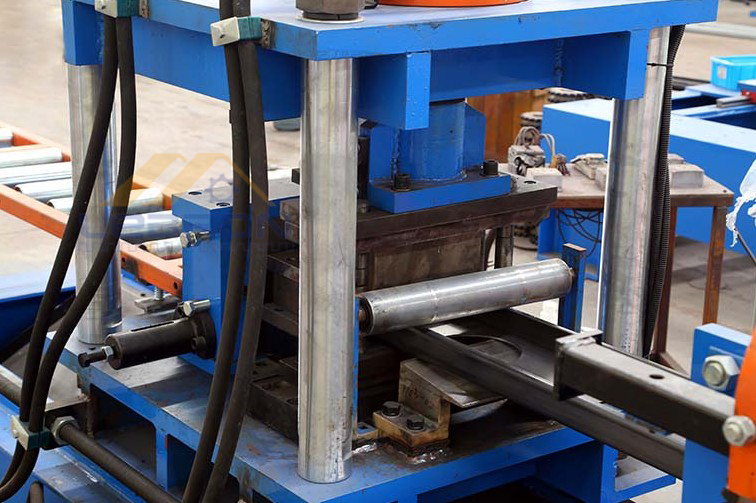

    The main components of a C Channel Roll Forming Machine include a manual decoiler, a feeding guide for materials of different sizes, a leveling device, a front hydraulic punching for holes or slots on flanges, a roll forming part, a rear hydraulic punching for holes or slots on the web, a hydraulic cutting for a cut to length, a PLC control cabinet, and a hydraulic oil pump.


    2. Technical Parameters of C Purlin Roll Forming Machine


    No.

    Item

    Description

    1

    Suitable Material

    GI, GL, PPGI, PPGL Coil, Q235 Coil

    2

    Suitable Thickness

    1.5~3.0mm

    3

    Roller Station

    16 stations

    4

    Forming Speed

    8~12m/min (including the punching and cutting)

    5

    Roller Material

    GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC

    6

    Main Motor Power

    15 KW

    7

    Shaft Material

    Cr40 steel, Tempering, and Quenching

    8

    Shaft Diameter

    70mm

    9

    Cutting

    Hydraulic Cutting

    10

    Blade Material

    C12MoV, Quenched

    11

    Hydraulic Station Power

    7.5 KW

    12

    Drive Type

    Single row Chain Drive

    13

    Machine Size

    10500mmx1500mmx1200mm (L*W*H)

    14

    Machine Weight

    Approx 10 tons

    15

    Machine Frame

    48mm Thick Plate

    16

    PLC Control System

    Panasonic


    3. Main Components of CZ Purlin Roll Forming Machine


    No.

    Name

    Quantity

    Remark

    1

    5Tmanual decoiler

    1

    As one complete part

    2

    Guiding device

    1


    3

    Pre-cutter

    1


    4

    Forming system

    1


    5

    Transmission system

    1


    6

    Hydraulic guillotine

    2


    7

    Support table

    2


    8

    Hydraulic station

    1


    9

    Control box

    1


    10

    Spare parts and tools

    1

    As attaching list


    4. Our Advantages


    1). Factory directly-sell price. This will surely save you costs.

    2). From buying to installation to use, we have professional teams to help you. We can save you time, and make your operation easier.

    3). Long-time Warranty. 18 months warranty. During this period, all the accessories are free. If the machinery has a nonrepairable quality problem, we accept the replacement or return.

    4). Rich experience in Logistics and Shipping. We can not only guarantee the machine’s safe and fullness during transportation but also save lots of unnecessary costs for you.


    5. FAQ:


    1. Q: How to visit our company:

    A: 1). Fly to Wuxi Airport directly;

    2). By fast train From Shanghai Hongqiao station to Wuxi station, then we can pick up you at our factory.


    2. Q: What should I provide if I want to customize the machine?

    A: You need to provide the profile drawing, material, thickness, voltage, and your special requirements. Then, our technology team will analyze and offer you a suitable technical proposal.


    3. Q: What is the Warranty?

    A: 12 months


    4. Q: What can you do if the machine is broken?

    A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new free parts to replace the broken parts. You need to pay the cost of the machine that exceeds the warranty period. we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.


    5. Q: If need a technician to the workshop to debug and teach, how to do it?

    A: We can send technicians to your country to install the machine. The buyer should bear the expenses including visa, round trip ticket, and suitable accommodation, also the buyer should pay a salary of 100 USD/day.
