Paper Making Machine Use High Quality Precision Machining Vacuum
Press Roller
1. Description of Vacuum Press Roller
Vacuum presses are widely used in medium and high-speed paper
machines, and are also an indispensable part of compound presses.
The layout of a general vacuum press and its ancillary equipment
are similar to those of an ordinary press. However, the
eccentricity of the vacuum press is opposite to that of the
traditional press, that is, the upper roller of the press is offset
by 50 to 60 mm in the outlet direction relative to the lower
roller.
To remove moisture from the press section, the vacuum chamber
suction in the vacuum roll must be directed towards the feed side
of the nip. Only in this way, the felt and wet paper first come
into contact with the vacuum roller, so that the sealing effect of
the nozzle of the vacuum chamber can be achieved, preventing air
from entering the vacuum system. Therefore, the felt generally
enters the pressing section in the horizontal downward direction,
and then moves away from the pressing section in the horizontal
downward direction.
| No. | Item | Description |
| 1 | Applicable models | The net paper width is 5600mm, and the speed is 1000m/min. |
| 2 | Roll Shell | Stainless Steel 304/2205. Wall thickness 45-85mm. Drill size 4.5mm |
| 3 | Rubber surface | polyurethane or wear-resistant rubber, thickness 20mm, hardness
P&J 10+/-2° or "A" 96+/-2°, rubber surface drilled with φ4mm
through-hole, opening rate is about 15%, blind can be added
according to requirements Holes or grooves. |
| 4 | Vacuum Box | The box body is welded with stainless steel 304, single-chamber,
double-chamber, or three-chamber, which can be removed as a whole,
with built-in sealing, lubricating, cleaning, and amplitude
modulation components, all made of stainless steel 304, equipped
with imported pneumatic tires and graphite sealing strips. Optional
high-pressure mobile water spray cleaning device. |
| 5 | Shaft head, bearing housing | Ductile iron, cast steel, forgings. |
| 6 | Bearing | SKF, TIMKEN, FAG, NSK, ZWZ, grease lubrication, or thin oil
lubrication. |
| 7 | Transfer Method | Key transmission, gear transmission, no transmission. |
| 8 | Quality Assurance | After assembly, the dynamic balance test of the whole roll, the
runout test of the roll surface, and the simulated test run. |
2. Technical Parameters
| No. | Trim Width (mm) | Bearing Center Distance (mm) | Diameter (mm) | Face Length (mm) | Suction Port Form | Suction Width (mm) | Rubber Thickness (mm) |
| 1 | 1575 | 2400 | 650 | 2020 | Single | 90 | 25 |
| 2 | 1600 | 2600 | 700 | 2080 | Multiple | | 25 |
| 3 | 1760 | 2760 | 600 | 2260 | Single | 100 | 25 |
| 4 | 1760 | 2800 | 700 | 2280 | Multiple | | 25 |
| 5 | 1760 | 2880 | 750 | 2290 | Single | 100 | 25 |
| 6 | 1880 | 2900 | 700 | 2380 | Multiple | | |
| 7 | 2362 | 3300 | 700 | 2780 | Multiple | | 25 |
| 8 | 2362 | 3400 | 750 | 2900 | Multiple | | 25 |
| 9 | 2400 | 3620 | 750 | 300 | Multiple | | 25 |
| 10 | 2640 | 3700 | 750 | 3200 | Multiple | | 25 |
| 11 | 2800 | 4000 | 750 | 3400 | Multiple | | 25 |
| 12 | 3150 | 4300 | 750 | 3710 | Single | 100 | 25 |
| 13 | 3200 | 4300 | 750 | 3760 | | | 25 |
| 14 | 3300 | 4350 | 750 | 3800 | Multiple | | 25 |
| 15 | 3500 | 4600 | 800 | 4100 | Single | | 25 |
| 16 | 3600 | 4850 | 800 | 4300 | | | 25 |
| 17 | 3800 | 5110 | 850 | 4450 | Single | | 25 |
| 18 | 4200 | 5460 | 850 | 4800 | | | 25 |
| 19 | 4400 | 5810 | 850 | 5150 | Single | | 25 |
| 20 | 4500 | 5900 | 1000 | 5230 | Single | | 20 |
| 21 | 4800 | 6300 | 1000 | 5630 | Single | | 20 |
| 22 | 5000 | 6500 | 1000 | 5750 | Single | | |
| 23 | 5500 | 7000 | 1000 | 6250 | Single | | |
| 24 | 5800 | 7350 | 1200 | 6550 | Single | | |
3. FAQ
1Q: Are you a factory or trading company?
1A: We are a factory.
2Q: Where is your factory located?
2A: Our factory is located in Wuxi City, Jiangsu Province, China.
You are warmly welcome to visit us!
3Q: What should I provide if I would love to customize the machine?
3A: We need profile drawing, and material information, such as
feeding width, thickness, yield strength of steel coil, voltage and
your special requirements.
4Q: What I should do if I just start to know roll forming
machinery?
4A: Contact us immediately, we provide free consultant pre-sales
service.
5Q: Can you make the machine according to my design or phototype?
5A: Yes. We have a professional designer for working out the most
suitable design and production plan for the machine that you are
going to book with us
6Q: How can I trust you that machines pasted testing running before
shipping?
6A: We record the testing video for your reference. You are welcome
to visit us and test the machine in our factory.
7Q: Do you provide installing and training overseas?
7A: Overseas machine installation and worker training services are
optional.
8Q: How is your after-sales support?
8A: We provide technical support online as well as overseas
services by skillful technicians.
9Q: Guarantee period:
9A: Within one year since the date of finishing commissioning. The
guarantee covers all the electric, mechanic and hydraulic parts in
the line except for the easy-worn parts.

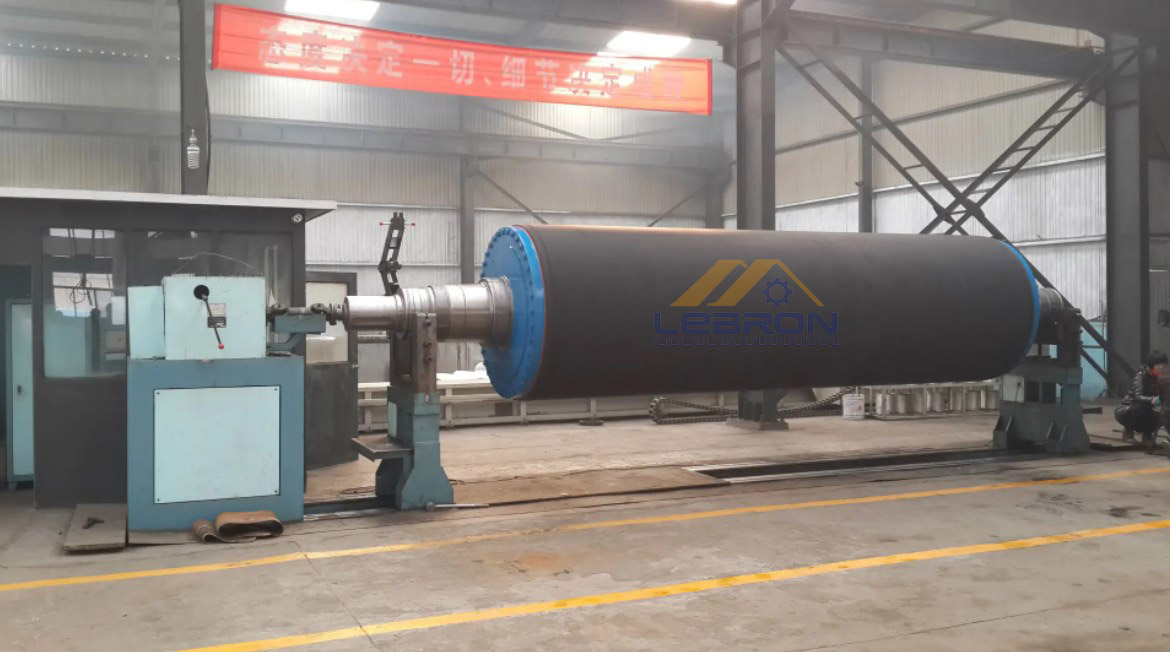

4. Product Picture
