    16Mpa C Z Purlin Roll Forming Machine 1.0mm Hydraulic Guillotine

    Ask Lasest Price
    Brand Name : Lebron-Machinery
    Model Number : C80-300
    Certification : ISO 9001: 2008
    Price : USD22000~40000 per Set (Negotiate)
    Payment Terms : L/C, T/T
    Supply Ability : 25 Sets per Month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    16Mpa C Z Purlin Roll Forming Machine 1.0mm Hydraulic Guillotine

    Easy Operate Advanced C Purlin Roll Forming Machine CZ Purlin Roll Forming Machine


    1. Description of CZ purlin roll forming machine


    CZ interchangeable purlin roll forming machine consists of guider, leveling device, 2 hydraulic punching devices, hydraulic cutting device, electric control system, hydraulic system, and so on.

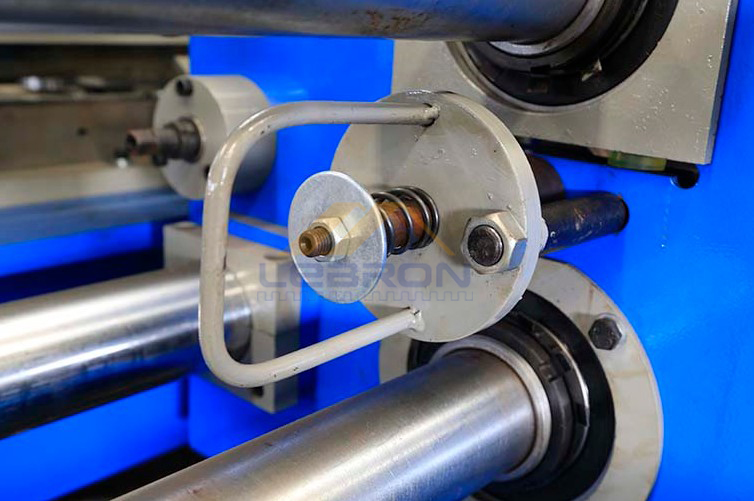

    The equipment uses three reducers to fix and rotate the fixed shaft through the sprocket gear to realize the exchange of different types of purlins. The C/Z exchange can be realized by manually rotating the fixed rotating plate.


    Input the parameters such as the length, longitudinal hole spacing, and quantity of the purlin, and the equipment can automatically punch, cut, and form. The fully automatic C/Z purlin machine also has the characteristics of stable and reliable operation, high punching precision, and high output, which brings users an excellent experience of convenient use, stable operation, and high production efficiency.


    Machine feature:


    a). Change size by PLC system. Interchangeable between C purlin and Z purlin by manual. It will take 5~10 minutes to finish.

    b). Easy operation, low maintenance cost

    c). Infinite sizing (any sizes with machine range), helps to save materials

    d). Optional punch hole at any position of purlin web size and flange size


    2. Technical Parameters of CZ Purlin Roll Forming Machine


    No.ItemTechnical Parameters
    1Material Thickness1.0~3.0mm
    2Main Power22kw
    3Voltage380V/50Hz/3 Ph (Can custom)
    4Hydraulic Power7.5Kw
    5Hydraulic Pressure16Mpa
    6Control systemSiemens PLC control
    7InverterYaskawa
    8Shaft material40Cr ( Φ80 )
    9Roller materialCr12
    10Cutting blade materialCr12MoV steel
    11Roller station18 Stations
    12Forming speed16~20m/min
    13Machine Size ( L*W*H )Approx. 10m*1.5m*1.8m
    14Machine WeightApprox. 10 Tons

    3. Main components of C Purlin Roll Forming Machine


    15Tmanual decoiler1As one complete part
    2Guiding device1
    3Pre-cutter1
    4Forming system1
    5Transmission system1
    6Hydraulic guillotine2
    7Support table2
    8Hydraulic station1
    9Control box1
    10Spare parts and tools1As attaching list

    4. Our Advantages


    Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.


    1). Germany COPRA software design


    2). 5 engineers with more than 20 years of experience


    3). 15 professional technicians


    4). 11 sets of advanced CNC production lines on site


    5). Passionate Team


    6). Installation engineers can reach your factory within 6 days


    7). 1-year maintenance and whole-life technical support


    5. After-Sale FAQ:


    1). Q: How to acquire service support?

    A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services include before-sale technical counseling, field installation, operation technical training, application solution training, troubleshooting support, etc.


    2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?

    A: Lebron-Machinery will provide 7 days’ free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.


    3). Q: What kind of warranty do Lebron-Machinery’s roll forming machines provide?

    A: Except for the consumables, the whole machine has a one-year limited warranty.


    4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?

    A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
