    Soncap 1.2mm Thickness Metal Stud And Track Roll Forming Machine

    Ask Lasest Price
    Brand Name : Lebron-Machinery
    Certification : CE/CAS/Soncap Certificate
    Price : USD 15000~25000 per Set
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

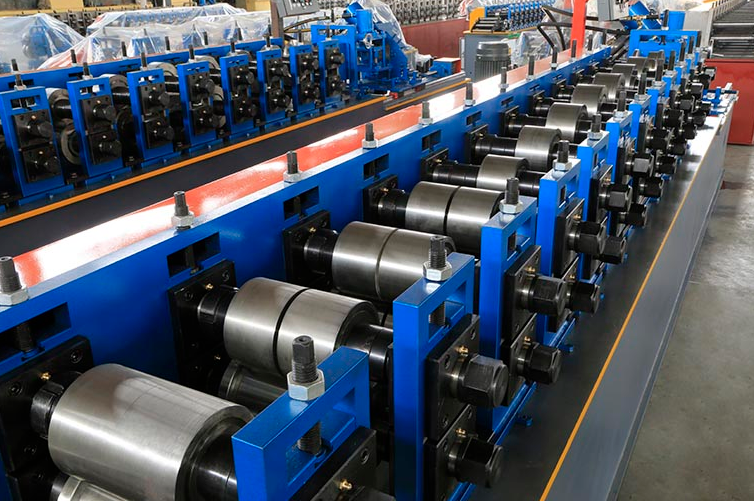

    Soncap 1.2mm Thickness Metal Stud And Track Roll Forming Machine

    5.5KW Fully Automatic Steel Stud And Track Roll Forming Machine Siemens PLC Controlled


    1. Description of stud and track roll forming machine


    The studs and track shapes mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable using and so on.


    In the modern building system, metal c stud and u tracks are great inventions in steel building projects, and that makes drywall stud and track roll forming machines, or even all the lightweight or light gauge steel frame roll forming machines highly popular in the international.


    Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for a drywall stud and track roll forming machine production, Chinese manufacturers are no doubt reliable.


    2. Major technical parameters of stud and track roll forming machine


    No.ItemSpecification
    1Can Formed MaterialGI, AL strip, or coil
    2Equipment operationAutomatic
    3Voltage380V 50Hz 3Phase (or custom)
    4The thickness of the sheet (mm)0.6-1.2mm
    5Material width(mm)As your drawing
    6Yield strength550Mpa max
    7The size of the roll forming machine3500mmx1200mmx1400mm
    8Speed20-30m/min
    9Diameter of shaft40mm
    10Weight of the Machine2200-2500KGS
    11Material of rollersCr12 steel quenched and chromed
    12Motor brandSiemens or Guomao
    13PLCSiemens or Delta or Mitsubishi
    14Total power (kW)8kw
    15Power of the hydraulic system4kw
    16Power of main molding core4kw
    17TransmissionChain with gears

    3. Major components of stud and track roll forming machine


    Components for stud and track roll forming machine
    NameQuantityUnits
    Decoiler1Set
    Main MachineFeeding device1Set
    Roll forming system1Set
    Cut Equipment1Set
    Hydraulic system1Set
    Electric control system1Set
    Supporter/Automatic Stacker1Set

    4. Installation service


    a. After the machine arrives at the destination, the seller will send a technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist with the installation work.


    The installation period is around 5 days. The buyer should have been prepared for the steel sheet, foundation position the machine before the seller’s technician's departure.


    The buyer should arrange the accommodation, food, and traffic in the destination


    Training period: 2 days. (we can supply training on the operation spot if buyer needs)


    Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. The inspection standard is based on the technical standard signed by both parties and our company standard.


    5. Quality Guarantee


    The Seller shall guarantee the goods with materials and workmanship in accordance with the required on the drawings, brand new, unused, and correspond in all respects with the quality, specification, and performance as stipulated in drawings and guarantee a good smooth operation for 12 months after the date of shipment (except consumables). This guarantee excludes the parts that require normal plant maintenance. The guarantee is strictly limited to the repairing and the replacing of the mechanical parts supplied by us found to be defective provided that failure has occurred during the ordinary use of the equipment and it is not accepted and claim due to damage to people, property, or loss of production.
