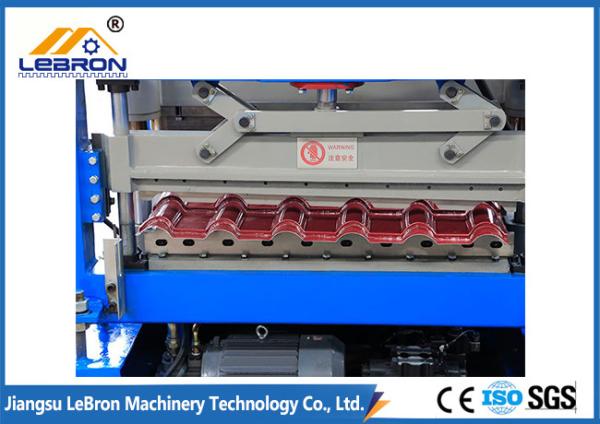

    High Capacity Glazed Tile Roll Forming Machine Durable Fully Automatic

    Ask Lasest Price
    Brand Name : Lebron-Machinery
    Model Number : YX25-162-810
    Certification : ISO Certificate
    Price : USD10000~30000 Per Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Sets per Month
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    High Capacity Glazed Tile Roll Forming Machine Durable Fully Automatic

    Durable And Stale Fully Automatic High Capacity Glazed Tile Roll Forming Machine


    1. Description of Glazed Tile Roll Forming Machine:


    Color steel glazed tile is made by using a color steel plate as the primary plate, after several processes, such as Rolling, Molding, Cutting, etc. becomes the final plate. It’s colorful and elegant. Because of its good characteristics, such as lightweight, high strength, nice waterproofing, and easy installation, it is widely used for villa roofs, City flat-to-slope projects, tourist spot buildings, and so on.


    The glazed tile roll forming machine uses galvanized steel sheets or color steel sheets or aluminum sheets of different colors as raw materials. The glazed tile roll forming machine has no production length limit. Multiple sets of different data can be set on the computer controller according to the construction requirements. After pressing "Confirm", the equipment will automatically produce finished products of different lengths according to the data set by the computer. The surface of the finished product produced by the glazed tile roll forming machine is beautiful, smooth, and free of scratches, which is convenient for construction and installation.


    2. Main Technical Parameters


    No.

    Main parameter of glazed tile machine

    1.

    Suitable to process

    Color steel sheet, galvanized steel sheet, aluminum sheet

    2.

    Width of the plate

    1000mm

    3.

    The thickness of the plate

    0.5-0.8mm

    4.

    Decoiler

    Manual, can load 5 tons of raw material

    5.

    Rollers for forming

    16 Rows

    6.

    Diameter of the roller

    80mm

    7.

    Rolling material

    45#Steel Chrome Plated

    8.

    Main motor power

    5.5kw

    9.

    Productivity

    6-8m/min

    10.

    Cutting method

    Hydraulic mold cutting

    11.

    Material of the cutting blade

    Cr12

    12.

    Hydraulic cutting power

    5.5kw

    13.

    Processing precision

    Within 1.00mm

    14.

    Control system

    Delta PLC control

    16.

    The main structure of the machine

    300 H steel

    17.

    Weight

    5T

    18.

    Dimensions

    6.5*1.5*1.3m

    19.

    Voltage

    380V 50Hz 3phases

    20.

    Certificate

    CE/ISO9001

    21.

    Custom

    According to the customer's requirement


    3. Main Components


    Name

    Quantity

    Uncoiler

    1set

    Coil sheet guiding device

    1set

    Main roll forming system

    1set

    Cutting device

    1set

    Hydraulic station

    1set

    PLC control system

    1set

    Support table

    1set


    4. Our Advantages


    Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.


    1). Germany COPRA software design


    2). 5 engineers with more than 20 years of experience


    3). 15 professional technicians


    4). 11 sets of advanced CNC production lines on site


    5). Passionate Team


    6). Installation engineers can reach your factory within 6 days


    7). 1-year maintenance and whole life technical support


    5. After-Sale FAQ:


    1). Q: How to acquire service support?

    A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services include before-sale technical counseling, field installation, operation technical training, application solution training, troubleshooting support, etc.


    2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?

    A: Lebron-Machinery will provide 7 days of free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.


    3). Q: What kind of warranty do Lebron-Machinery’s roll-forming machines provide?

    A: Except for the consumables, the whole machine has a one-year limited warranty.


    4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?

    A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
