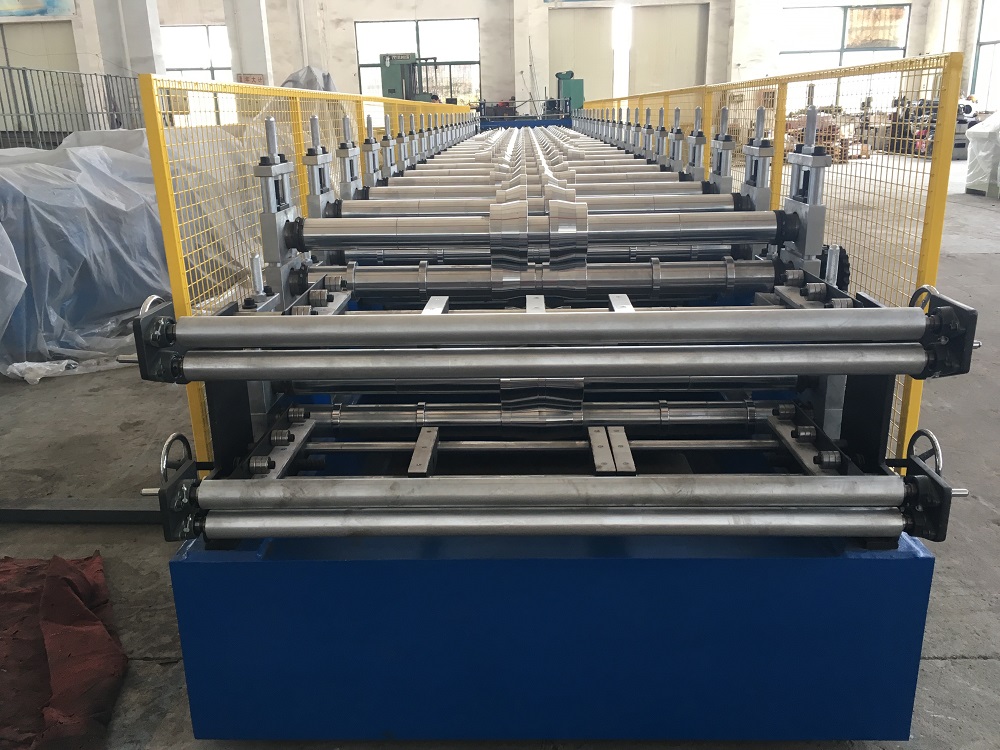

    Panasonic PLC Control Double Layer Roll Forming Machine Metal Roofing Corrugated

    Panasonic PLC Control Double Layer Roll Forming Machine Metal Roofing Corrugated


    1. Description od double layer roll forming machine:


    Double layer roll forming machine can roll forming two different types of roofing sheets without changing anything tools. Because double layer roll forming machine has two layers. Upper and lower can roll-forming different sheets. Besides, the sea freight for import is saved by 50%. double layer roll forming machine is the popular and wise choice for both new entrepreneurs and established metal building manufacturers


    Compared to a single layer roll forming machine, a double layer roll forming machine is used for produce two different kinds of metal sheets. The roof sheets can be one trapezoidal roofing and one roof/wall cladding sheet, or one trapezoidal sheet and one metal roof tile; or one trapezoidal roofing sheet and one corrugated roofing sheet; or one corrugated sheet and one metal glazed roof tile etc. In a word, any two of the metal roof panels can be produced by this same double deck roll forming machine.


    A double layer roll forming machine usually consists of a decoiler, two entry feeding guides, two roll forming unit, one cutting frame with two cutting dies, one transmission system, one control system, and the run-out tables.


    2. Features of Double Layer Roll Forming Machine


    1. Double layer roll forming machines can use a galvanized steel sheet, colored armor plate or aluminum plate as the material plate.


    2. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable, and maintenance-free.


    3. We can make and design all kinds of forming machines according to the customer's request.


    3. Main technical parameters of double layer roll forming machine


    1Coil Width1220mm max
    2Rolling Speed10-16m/min
    3Thickness0.3-0.8mm
    4Control SystemPLC (Panasonic)
    5UncoilerManual uncoiler
    6Pre-cuttingPre-cutting install after feeding for customer change coil only
    7Roller Stations

    Up layer: 24stations

    Down layer: 22 stations

    8Roller Material45# steel with chrome plated surface
    9Shaft MaterialDia 76mm, material:45#, quenching and tempering, coated with hard chrome
    10Post cuttingThe machine adopts hydraulic cutting system
    11Material Of CuttingCr12 steel, 58-62 HRC
    12Maim Motor Power11 KW
    13Hydraulic Station Power7.5 KW
    14Hydraulic Pressure12-16Mpa adjustable
    15Structure Of The StationsGuide pillar
    16Tolerance3m+-1.5mm
    17Voltage

    380V, 50HZ,3 phase

    18Drive MethodBy gear chain

    4. PLC control system feature


    Before production, you input your requirement into control cabinet. For example, 3250 mm per piece, 20 pieces in total.
    When the sheet comes to 3250 mm length, the machine will slow down-stop-cut-run again. When you get 20 pieces, the machine will fully stop.

    You can set any length and pieces according to your actual need.

    The whole process is automatically controlled by computer. In this way, you can ensure the accuracy, and easy work.


    5. After-sell service


    A. Foreign debugging

    If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day


    B. Guarantee period

    The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).


    C. Training

    During installation and adjustment of the equipment, our engineers shall provide the training to

    buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.


    D. Lifetime services

    Life time services to every customer.
