Speed 10-15 m/min Corrugated Roof Sheet Roll Forming Machine
Hydraulic Cut
1. Description of roll forming machine:
Floor deck is produced by galvanized sheet rolling to shape. The
cross-sections including V-shape, U-shape, Trapezoid-shape and
Wave-shape. It mainly used as the permanent shuttering. It is
widely used for the multiple layers steel structure constructions,
such as exhibition halls, steel structure plants, warehouses, steel
structure buildings, Airports, Railway stations, Gymnasia, Concert
halls, Theaters,Supermarkets, Logistics centers, High-rise steel
structure building, etc.
2. Technical details roll forming machine:
1). Weight: About 58000Kgs
2). Size: About 6800*1400*1150mm (length x width x height)
3). Suitable Raw Material: Galvanized or Galvalume Coils
4). Coil Thickness: 0.8-1.2mm
5). Coil Yield Strength: 235Mpa
6). Diameter of forming rollers shafts: 85mm
7). Roll Forming Speed: 10-15/min
8). Forming rollers material: No.45 steel, coated with chromed
treatment
9). Cutter material: CR12 mould steel, with quenched treatment
10). Controlling system: PLC and Converter
11). Main motor power: 2x18.5kw
12). Hydraulic unit motor power: 5.5kw
13). Electric voltage: According to customer's requirement
14). Other requirement: Custom
3. Roll forming machine flow chart:
Uncoiler --- Feeding --- Pre-cutting --- Roll Forming --- Post
Cutting --- Auto Stacker
4. Main components of floor deck roll forming machine:
| NO. | Item | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main roll forming machine | set | 1 |
| 3 | PLC control box | set | 1 |
| 4 | Supporter table | set | 1 |
5. Advantages:
1). Germany COPRA software design
2). 5 engineers with more than 20 years experience
3). 30 professional technician
4). 22 sets advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
6. After-sell service
1). Foreign debugging
If you need, we will arrange our professional engineers to help you
install and debug the machines well. Buyer should pay $60 per day
2). Guarantee period
The warranty will be maintenance, maintain in the guarantee period
of 18 months starting from delivery. Because of the quality of
equipment during guarantee period, we will provide the parts free
of charges, which is in the conditions of correct operation.
(Natural disasters or factors which can’t forced by human are
excluded).
3). Training
During installation and adjustment of the equipment, our engineers
shall provide the training to
buyer’s personnel request to operate and maintain the equipment.
Including foundation construction, electrical works, hydraulic oil,
safe operation and non-standard safety items, testing material and
etc.
4). Lifetime services
Life time services to every customer.

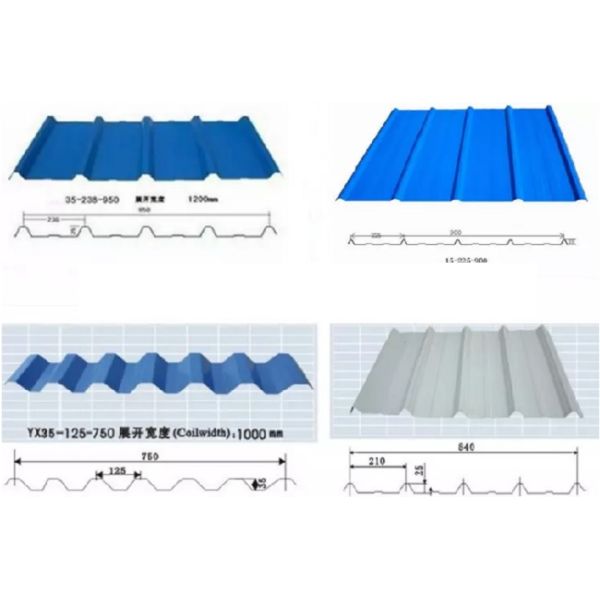

6. Picture
