    5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity

    Ask Lasest Price
    Brand Name : Lebron-Machinery
    Model Number : LBM-LGS-013
    Certification : ISO9001: 2008
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 25 Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity

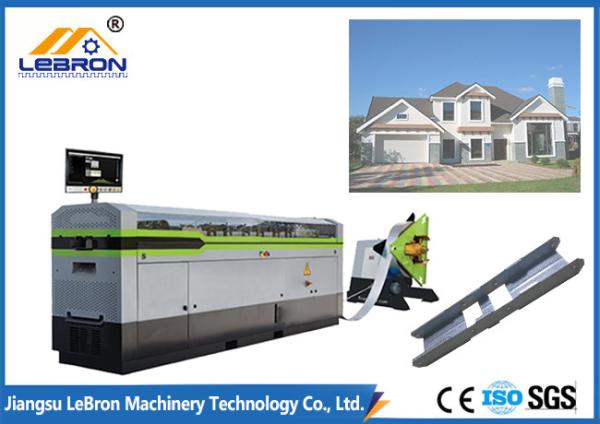

    5000 mm Length Green Light Gauge Steel Framing Machines Full Automatic Mode


    Light-gauge steel Construction is made by a Light Gauge Steel Framing Machine where sheets of steel are passed through a series of roll forming dies to create there desired shade. The desired strength is achieved by a combination of the thickness or gauge of the steel utilized as well as the shape of the member. The various bends in the member's cross-section add to the stiffness and ultimate strength of the piece.


    The building system characteristics would be summarized as follows:


    The light construction residential house’s frame is assembled from cold formed steel profiles. In the gaps between the elements of the frame heat insulation material is placed and the frame is supplied with surface layers made of various materials, forming a layered structure.


    Generally, the elements of the frame structure are constructed of C and U profiles with a dry, assembly style building technology. Numerous steel fasteners, stiffeners and other complementary profiles are connected to the basic elements of the structure.


    The applied materials filling the gaps between the elements of the frame not only perform heat insulation, but also meet acoustical requirements and they are an efficient fire protection tool. With the application of efficient heat insulation materials a good level of fire protection and an excellent heat and sound insulation can be achieved.


    The inside cover is mostly made by plasterboard. Composite layers by wood as basic material (e.g. OSB) are preferably used as outside wall board cover and floor slabs. With this, we can exploit the advantage of high strength, which provides stiffening function.


    Steel construction components can be pre-measured and precut to exact specifications. On-site adjustments are generally not required.


    Steel components generate minimal waste and all light-gauge steel construction materials are 100% recyclable.


    2. Major Technical Parameters of Light Gauge Steel Framing Machine


    Major Technical Parameters of Light Gauge Steel Framing Machine
    MaterialG300-G550 zinc coated coil, aluminum-zinc coated coil
    Thickness0.75-1.2mm
    Width182mm
    Maximum line velocityApprox 2800m/h
    Normal production capacity300-700 m/h
    Main unit power7.5Kw
    Voltage380V/50Hz/3phase
    Hydraulic station5.5Kw
    Total power14.5Kw
    Main unit remote controlStandard mode
    Punching dies

    Dimple hole, chamfer cut, web notch, lip cut,

    Service hole, swage, shear, bolt hole

    Dimple accuracy+/-0.5mm
    Inkjet printerStandard (custom according to buyer’s requirement)
    Machine sizeAbout 5m*1.0m*1.5m
    WeightAbout 4.5 Tons
    ColorBlue, Orange, Green, Black (can be custom)

    3. Major Components of Light Gauge Steel Framing Machine


    No.Item
    1One set of Roll Forming Machine
    2One set of 1.5T Hydraulic Uncoiler
    3One set of Automatic Punching Device
    4One set of Hydraulic Motor System
    5One set of IPC Computer Controlling System with Product Software
    6One set of Hydraulic Post-cutter
    7One set of Automatic Printing Device
    8One set of Vertex BD Design Software
    9One set of Run Out Table

    4. After-sale service


    A. Foreign debugging

    If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day


    B. Guarantee period

    The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).


    C. Training

    During the installation and adjustment of the equipment, our engineers shall provide the training to

    buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.


    D. Lifetime services

    Lifetime services to every customer.
