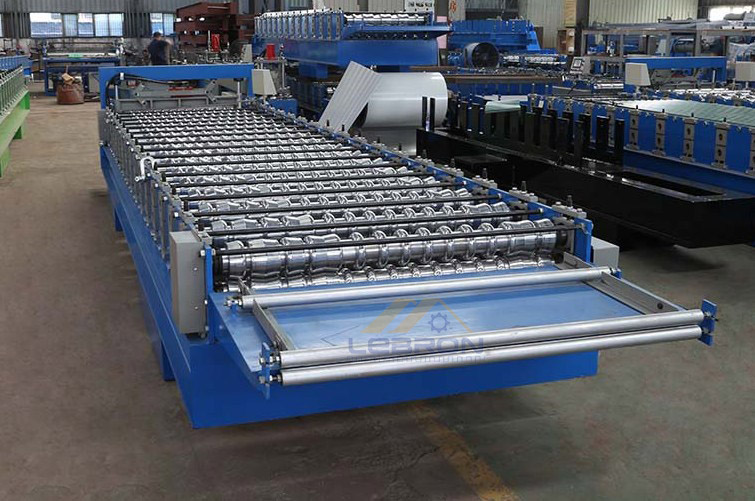

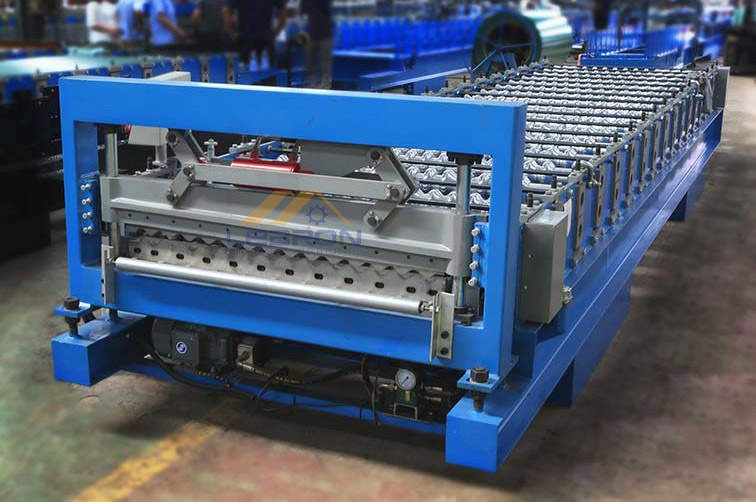

High-Efficiency Blue Color Corrugated Sheet Roll Forming Machine Mitsubishi PLC

1. Main Technical Parameters of corrugated roofing sheet roll forming machine:

1). Main Motor Power: 5.5KW

2). Drive Type: Chain

3). Machine Frame: The machine frame and structural parts are made of national standard 350H steel, reduce the stress after welding

4). Side-wall Panel: Material: Q235, Thickness: 25mm. Finish-machining

5). Welding material: Use high-grade Flux-core welding wire. The strength of the machine frame and structure parts is nearly the same as Vessel parts quality standard

6). Roller: Material: No. 45 steel, Finishing-machining. coated with hard chrome, Chrome thickness: 0.05mm. Quench heat-treatment. Machining key-ways on the roller, set pin-keys

7). Roller Shafts: Material: No. 45 Steel. Finishing-machining. Diameter: φ75 mm.

All the roller shafts machining key-ways, set pin-keys.

8). Cutter Blade Material: High-quality Cr12 steel. Finishing-machining. Quenched heat-treatment. HRC 58-62. Wire-electrode Cutting. Finish-grinding.

9). Liner Bushing: 45# Steel Seamless Pipe. Finishing-machining. Make sure the size and parallelism. Black painting treatment.

10). Bearing: Type: 6210 types, etc. Brand: SXM. Origin: Jiangsu, China

11). Rack rows: 22 rows

12). Forming Roller rows: 21 rows

13). Roll forming speed: approx 10~16m/min (Without cut time)

14). Machine Size: About 8500*1700*1500mm

2. Electric Appliances

1). Frequency converter: Mitsubishi Brand

2). Computer PLC: Mitsubishi Brand

3). Touch Screen: Mitsubishi Brand

4). Low Voltage Apparatus: Schneider Brand

5). Encoder: Mitsubishi Brand

6). Hydraulic Pump Station Motor Power: 2.2 Kw

7). Hydraulic Oil Pump type: YBI-10

8). Hydraulic Valve: Beijing Huade Brand

3. Main Components of corrugated roofing sheet roll forming machine

Jiangsu LeBron Machinery Technology Co., Ltd. (Brand Name: Lebron-Machinery) is a professional designer and manufacturer of Cold Roll Forming Machines. Founded in 2007, with over 10 years experience of in design and manufacture, now LBM is a leading and widely recognized manufacturer and exporter of the Cold Roll Forming Machines in Wuxi City, Jiangsu Province, China.

Founded in 2007, after over 10 years’ development, now, LBM company has factory and branch company employees over 130 people, total areas over 12000 square meters, plants areas over 10000 square meters. Registered capital 10 million RMB. Annual output value over 70 million RMB. The factory has 11-set advanced CNC production lines on-site, has 15 professional technicians, among them, there are 5 engineers with more than 20 years of experience.

LBM company is specialized in the production of various kinds of Cold Roll Forming Machines. The machine ranges covering Roofing Sheet Roll Forming Machine, Wall Panel Roll Forming Machine, Corrugated Roofing Sheet Roll Forming Machine, C/Z Purlin Roll Forming Machine, Floor Deck Roll Forming Machine, Sandwich Panel Roll Forming Machine, Metal Gutter Roll Forming Machine, Metal Downspout Roll Forming Machine, Door Frame Roll Forming Machine, Shutter Door Roll Forming Machine, Window Frame Roll Forming Machine, Storage Rack Roll Forming Machine, Structure Profiles Roll Forming Machine, Cable Tray Roll Forming Machine, Solar Strut Channel Roll Forming Machine, Highway guardrail roll forming machine, Car panel roll forming machine, etc.

LBM Company’s roll forming machines are widely used in the production of industrial products. With over 260 customer relationships, LBM sells to leading companies in a wide variety of industries. We service a multitude of industries with custom Cold Roll Forming Machines including Automotive parts, Vessel accessories, Decking & Panel, Garage Doors (including door skins and track), Window & Door Frame, Roofing, Siding, Purlins, Gutter, Soffit, Corner-bead, Fencing, Shelving and Racking, Construction materials, etc.

LBM constantly provides good quality machines to our clients with timely deliveries at the most competitive prices. Meantime, LBM has the people and experience to help you succeed with dedicated after-sales support, customer service, and technical expertise.
