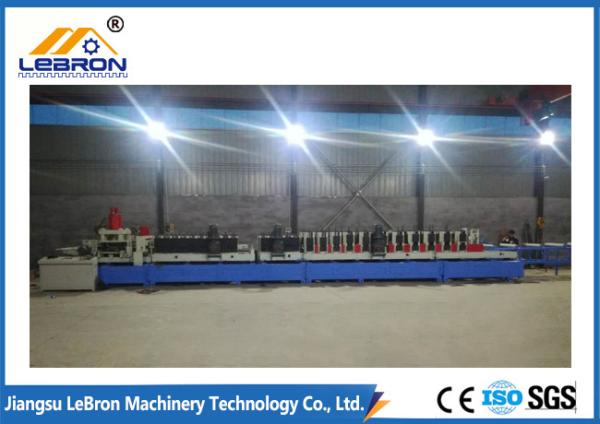

Pre Cutting Later Punching Type Cable Tray Roll Forming Machine Automatic controlled by PLC system

Main Technical Details

1. Suitable Plate Material:

1.1 Material– thickness:0.8-1.5mm

1.2 Raw material: Galvanized steel and black steel sheets

2. Working Speed: 12meters / min

3. Forming Steps: 20 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining

6. Driven system: chain drive, shafts diameter 100mm

7. Main Power with reducer: 22KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 11KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan

13 Touch Screen—Beijing Kunlun Encoder--Omron, Japan

14. Electric parts--Schneider

15. Adjust the height by the motors and the rails, controlled by the PLC

Main Components:

Work Flowchart:

Our service

(processes)

First step:

Designing. After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.

Second step:

The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.

Third step:

Assembling. The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.

Fourth step:

Test. Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.

Five step:

Delivery. Because of the weight of machine itself, the packing is usually bare packing. Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

Jiangsu LeBron Machinery Technology Co., Ltd. (Brand Name: Lebron-Machinery) is a professional designer and manufacturer of Cold Roll Forming Machines. Founded in 2007, with over 10 years experience of in design and manufacture, now LBM is a leading and widely recognized manufacturer and exporter of the Cold Roll Forming Machines in Wuxi City, Jiangsu Province, China.

Founded in 2007, after over 10 years’ development, now, LBM company has factory and branch company employees over 130 people, total areas over 12000 square meters, plants areas over 10000 square meters. Registered capital 10 million RMB. Annual output value over 70 million RMB. The factory has 11-set advanced CNC production lines on-site, has 15 professional technicians, among them, there are 5 engineers with more than 20 years of experience.

LBM company is specialized in the production of various kinds of Cold Roll Forming Machines. The machine ranges covering Roofing Sheet Roll Forming Machine, Wall Panel Roll Forming Machine, Corrugated Roofing Sheet Roll Forming Machine, C/Z Purlin Roll Forming Machine, Floor Deck Roll Forming Machine, Sandwich Panel Roll Forming Machine, Metal Gutter Roll Forming Machine, Metal Downspout Roll Forming Machine, Door Frame Roll Forming Machine, Shutter Door Roll Forming Machine, Window Frame Roll Forming Machine, Storage Rack Roll Forming Machine, Structure Profiles Roll Forming Machine, Cable Tray Roll Forming Machine, Solar Strut Channel Roll Forming Machine, Highway guardrail roll forming machine, Car panel roll forming machine, etc.

LBM Company’s roll forming machines are widely used in the production of industrial products. With over 260 customer relationships, LBM sells to leading companies in a wide variety of industries. We service a multitude of industries with custom Cold Roll Forming Machines including Automotive parts, Vessel accessories, Decking & Panel, Garage Doors (including door skins and track), Window & Door Frame, Roofing, Siding, Purlins, Gutter, Soffit, Corner-bead, Fencing, Shelving and Racking, Construction materials, etc.

LBM constantly provides good quality machines to our clients with timely deliveries at the most competitive prices. Meantime, LBM has the people and experience to help you succeed with dedicated after-sales support, customer service, and technical expertise.
