    Smooth Straight Door Frame Roll Forming Machine , Cold Roll Forming Equipment

    Ask Lasest Price
    Brand Name : LBM
    Model Number : LBM-DFM-Model 01
    Certification : ISO 9001: 2008
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,, MoneyGram
    Delivery Time : 30-40 days
    Price : Negotiation
    Supply Ability : 26 Sets per Month
    • Product Details
    • Company Profile

    Smooth Straight Door Frame Roll Forming Machine , Cold Roll Forming Equipment

    High Strength Smooth Straight Door Frame Cold Roll Forming Machine Servo Guiding Device​


    1. The Chart of Process Flow


    Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

    Smooth Straight Door Frame Roll Forming Machine , Cold Roll Forming Equipment

    2.Technical parameters


    1. Name :door frame roll forming machine door related roll forming machine
    2. Main motor power:4kw, 3 phase
    3. Hydraulicmotor power: 3kw
    4. Hydraulic Pressure:10-12MPa
    5. Voltage:380V /3phase/ 50 HZ (or as your requirement)
    6. ControlSystem: PLC Delta Inverter
    7. Main Frame:300mm H-Beam or 350mm
    8. Backboard Thickness14mm
    9. Chain Size:20mm
    10.Feeding Material:steel coils
    11. Feeding Thickness1-2mm
    12. Roll Station:14--20 roll steps(according to different design)
    13. Roller Diameter:50mm(depend on different design)
    14. Roller material:45# steel
    15. Cutter material:Cr12 , quenched
    16. Overall Size:according to different design
    17. Total Weight:4.0T

    3. Device configuration


    1. feeding into platform

    2. plate forming automatic cutting device

    3. hydraulic system

    4. imported computer control system

    5. automatic measurement of size, punching system

    6. high precision automatic length measuring system

    7. finished product receiving system


    4. Advantage:


    - This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table

    - The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.

    - Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.


    5. FAQ


    Q: Can you make the machine according to my design or proto type?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us


    Q: Are you a factory or trading company ?


    A: We are a factory?


    Q: Where is your factory located?


    A: Our factory is located in YingKou City, LiaoNing Province, China. All our clients, from home or abroad, are warmly welcome to visit us !


    Q: How do you guarantee the quality of the products?


    A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory


    Every one of our products have strict testing procedures, must be 100% quality assurance.


    Q: How can we be assured that you will deliver us quality machine with spare parts?


    A:1. Customers to send the technical people to our factory for checking the quality.


    2.We can send the technicians to the buyer`s factory for the installation of the machine.


    3.Good aftersales-service, its free of charge during the warranty period.

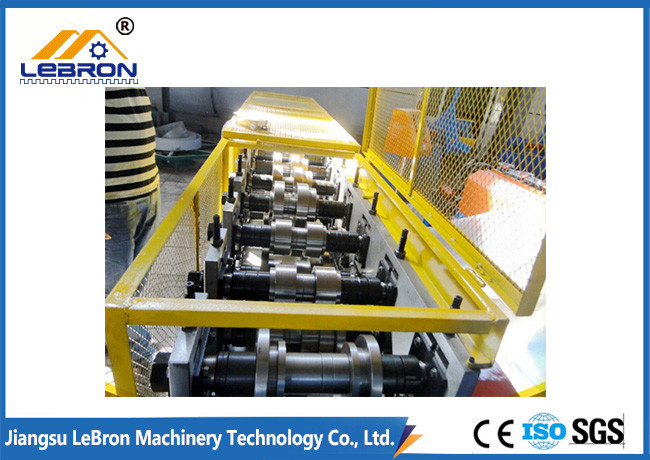

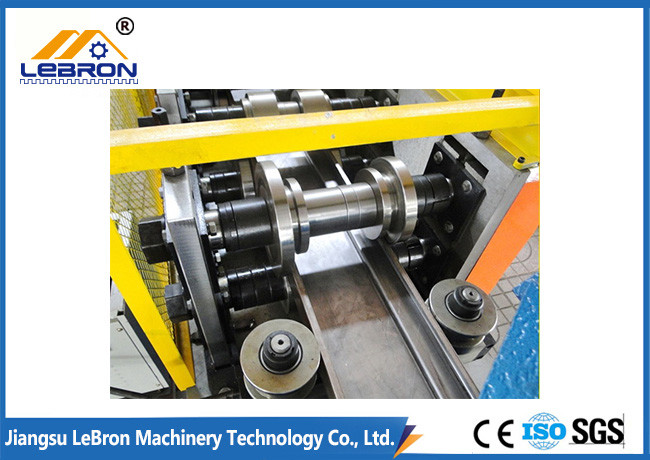

    6. Picture


    Smooth Straight Door Frame Roll Forming Machine , Cold Roll Forming EquipmentSmooth Straight Door Frame Roll Forming Machine , Cold Roll Forming EquipmentSmooth Straight Door Frame Roll Forming Machine , Cold Roll Forming Equipment
