    GI And GL Material Steel Door Frame Making Machines Adjustable Forming Speed

    Ask Lasest Price
    Brand Name : LBM
    Model Number : LBM-DFM-003
    Certification : ISO 9001: 2008
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,, MoneyGram
    Delivery Time : 30-40days
    Price : Negotiation
    Supply Ability : 25 Sets per Month
    • Product Details
    • Company Profile

    GI And GL Material Steel Door Frame Making Machines Adjustable Forming Speed

    GI And GL Material Door Frame Cold Roll Forming Machine PLC Control Servo Guiding Device​


    1. Product Description


    Descriptionoffered specification
    Material thickness0.7-1.2mm
    Raw materialGalvanized coils yield strength ≤G250MPa
    Forming speed8-15m/min
    Decoiler3 Ton manual decoiler
    Material of main shaft45# high quality steel
    Levelling device7 roller levelling including 3 top rollers and 4 bottom rollers
    Cuttinghydraulic cutting; quenching HRC58-62
    Motor power of hydraulic station4kw
    Hydraulic station pressurre12Mpa
    Tolerance6m+-1.5mm
    Machine FrameH Beam Steel

    2.Hydraulic Cutting


    1. The cutter blade material: Cr12mov HRC58-62 degree
    2. Blades number: 2 sets
    3. Cutting after forming: Cut the sheet after roll forming to required length
    4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
    5. Material of blade: CR12with heat treatment
    6. Length measuring: Automatic length measuring
    7. Tolerance of length: 6m+/- 0.5mm


    3. After-sales service


    Technical Support

    Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

    Spare Parts

    Promptly providing spare parts and wearing parts.

    Upgrade

    Improve technology and upgrade of equipments.


    4. Description of door frame cold roll forming machine


    LBM company is producing and offering outstanding quality range of door frame roll forming machines. These door frame roll forming machines can be customized as per customer requirement based. These door frame roll forming machines are mostly known for its stability and superiority. These door frame roll forming machines can be availed at best competitive prices.


    LBM company is producing high quality door frame roll forming machines. Most of them are exported to Australia, Thailand, South Africa, Crotia, Sudan, Kuwait, Bangladesh, Turkey, Russia, etc.


    5. Door frame sketch



    6. Our service


    Door frame roll forming machine Install and Training:


    If buyers come to our factory to inspect, the training to install and operate is provided face to face.

    If not, manual and video is provided to show how to install and operate.


    After-sale Service:


    We provide 12-hour online service for our customers. Phone: +86 15821208506

    a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.

    When technique men go to the buyer's place to debug the machines, the buyer should pay the

    expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.

    b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.

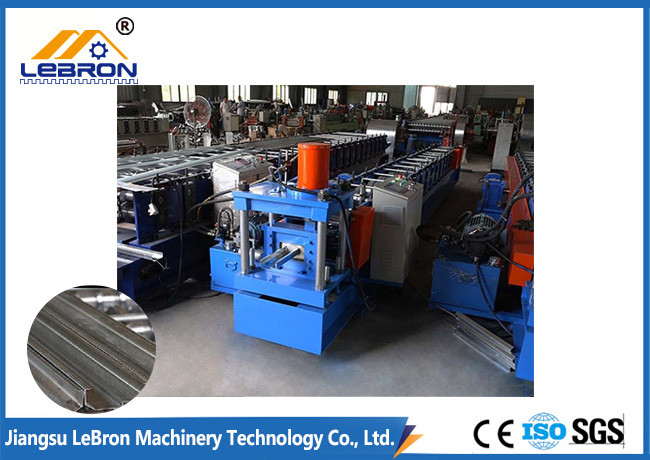

    7. Picture


    GI And GL Material Steel Door Frame Making Machines Adjustable Forming SpeedGI And GL Material Steel Door Frame Making Machines Adjustable Forming SpeedGI And GL Material Steel Door Frame Making Machines Adjustable Forming Speed
