    Low Noise Light Steel Keel Manufacturing Machine 8-12m/Min High Rolling Speed

    Ask Lasest Price
    Brand Name : LBM
    Model Number : LBM-LSK-004
    Certification : ISO: 9001: 2008
    Payment Terms : L/C, T/T
    Delivery Time : 30 work days
    Price : Negotiation
    Supply Ability : 25 Sets per Month
    • Product Details
    • Company Profile

    Low Noise Light Steel Keel Manufacturing Machine 8-12m/Min High Rolling Speed

    Channel Forming Light Steel Keel Roll Forming Machine Engineers Available to Service


    1. Description of the light steel keel roll forming machine


    Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for a light steel keel roll forming machine production, Chinese manufacturers are no-doubt reliable.

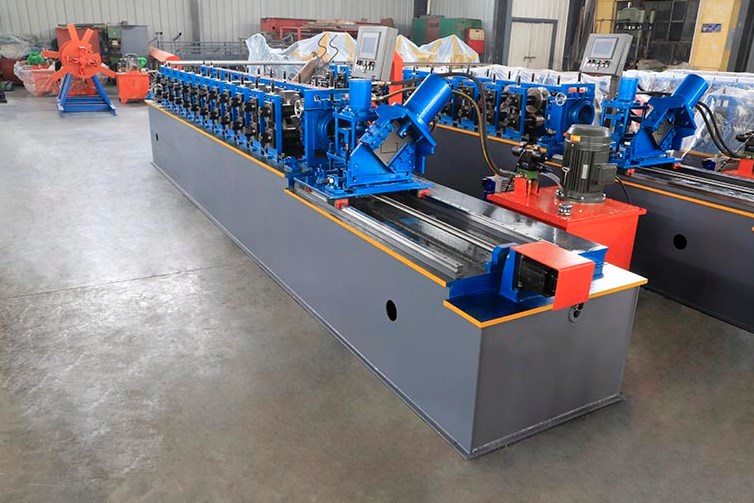

    A light steel keel roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and runout tables. Under PLC control system, this drywall stud and track roll forming machine fully automatically produce 4-6 metal c studs or u tracks out of galvanized steel of 0.6-1.2mm thickness from punching, roll forming and cutting.


    Like other light steel keel roll forming machine, a ceiling roll forming machine works at a speed 8- 12m/min. Under the PLC control system, this ceiling roll forming machine cut the final products as per required lengths and quantities. In addition, chains-sprockets transmission is typical transmission method for a ceiling roll forming machine.


    2. Main technical parameters of the light steel keel roll forming machine


    1Name of commodity & specificationLight steel keel roll forming machine
    2Main motor power3 KW, 3 Phase
    3Hydraulic motor power3 KW
    4Hydraulic Pressure10-12 MPa
    5Voltage380V /3phase/ 50 HZ
    6Control SystemPLC Delta Converter
    7Main Frame300mm H-Beam
    8Backboard Thickness14mm
    9Chain Size20mm
    10Feeding Materialcolor steel coils
    11Feeding Thickness0.3-1.2mm
    12Productivity8-12m/min
    13Roll Station11 stations
    14Roller DiameterDia 70mm
    15Roller material45# steel
    16Cutter materialCr12 , quenched
    17Cr-Plating Size0.05mm
    18Overall Size3000×800×1000mm
    19Total Weight2.5T

    3. Introduction of the feature of the light steel keel roll forming machine


    No.Description
    1

    Adopt Windows system touch panel

    Can input NC instructions Via network or USB interface quickly

    2Adopt visual work process monitoring
    3Equip Vertex BD Software
    4Adopt German Bosch Rexroth hydraulic system. Quick loading & unloading mold design
    5High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing
    6Built-in maintenance free inkjet printer
    7Perfect forming and accurate sizing

    4. Main components for light steel keel roll forming machine


    Components for light steel keel roll forming machine
    NameQuantityUnits
    Passive Uncoiler1Set
    Feeding Device1Set
    The Main Roll Forming Unit1Set
    Hydraulic Cutter1Set
    Hydraulic Station1Set
    PLC System1Set
    Ran-out Table1Set

    5. FAQ


    Q: How to maintenance?
    A: If using frequently, best coating lubricant on the chain and two ends of the shaft every month,

    replace the hydraulic oil every 1-2 years.

    Q: Can you be responsible for transport?
    A: Yes, please tell me the destination port or address.we have rich experience in transport.

    Q: Can you make the machine according to my design or photo type?
    A: Yes. We have an experienced team for working out the most suitable design and production


    Q: How many workers operate this machine to manufacture?
    A: Only 1-2 worker.

    Q: Can you supply the raw materials?
    A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil


    Q: How is this machine's service life?
    A: In the normal maintenance, the service life at least 8 years.
