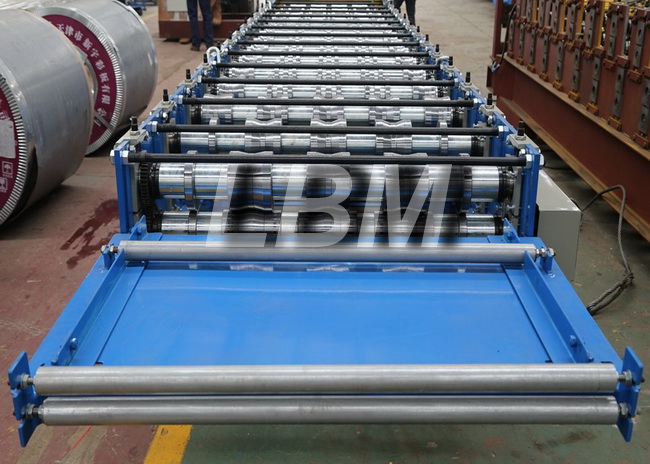

    New YX35-125-750 color steel tile roll forming machine PLC controlled roof sheet roll forming machine

    Ask Lasest Price
    Brand Name : LBM
    Model Number : LBM-CTM-Model 02
    Certification : ISO 9001: 2008
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Delivery Time : 30-40
    Price : Negotiation
    • Product Details
    • Company Profile

    New YX35-125-750 color steel tile roll forming machine PLC controlled roof sheet roll forming machine

    New YX35-125-750 color steel tile roll forming machine PLC controlled roof sheet roll forming machine


    1. Description of color steel tile roll forming machine

    Color steel tile is made by using the color steel plate after the rolling, become the steel plates with various kinds of wave shapes. This machine is suit for the production of color steel tiles, which is used for industrial and civilian constructions, warehouses, the big cross-beam structure houses’ roof, metope and the inner/outer metope’s decoration.

    LBM factory is producing high quality color steel tile roll forming machines, and exported to India, Iran, Russia, Vietnam, Ghana, Tanzania, etc.


    2. Technical details of color steel tile roll forming machine

    Specifications
    Size8.5m*1.7m*1.5m (Length x Width x Height)
    WeightAbout 7000 Kg
    ColorMain color: Blue
    Warning color: Yellow
    Suitable Raw Material
    MaterialPPGI and PPGL Coils, Hot rolled coil, Cold rolled coil
    Thickness0.4-0.7mm
    Coil width1000mm, 1220mm, 1450mm
    Yield Strength235Mpa-550Mpa
    Main Technical Parameters
    Quantity of forming rollers stations18
    Diameter of forming rollers shafts75mm
    Roll Forming Speed10-16m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 7.5 Kw
    Electric voltage380V/3Ph/50Hz or 220V/3Ph /60Hz (or custom)



    3. Main components of color steel tile roll forming machine


    Main Components
    Manual Decoiler1 Set
    Guiding device1 Set
    Leveling System1 Set
    Roll Forming System1 Set
    Hydraulic Cutting System1 Set
    PLC control box1 Set
    Hydraulic Unit1 Set
    Receiving Tables1 Set









    4. Roof sheet sketch




    5. Our Advantages

    · Germany COPRA software design

    · 5 engineers with more than 20 years experience

    · 30 professional technician

    · 22 sets advanced CNC production lines on site

    · Passionate Team

    · Installation engineers can reach your factory within 6 days

    · 3 years maintenance and whole life technical support

    · Free accessories can be offered to you during the warranty period
