Servo Guiding Device Color Steel Tile Roll Forming Machine PLC Control 8-12m/min​

1. Description of LBM-GTM-008 type color steel tile roll forming machine:

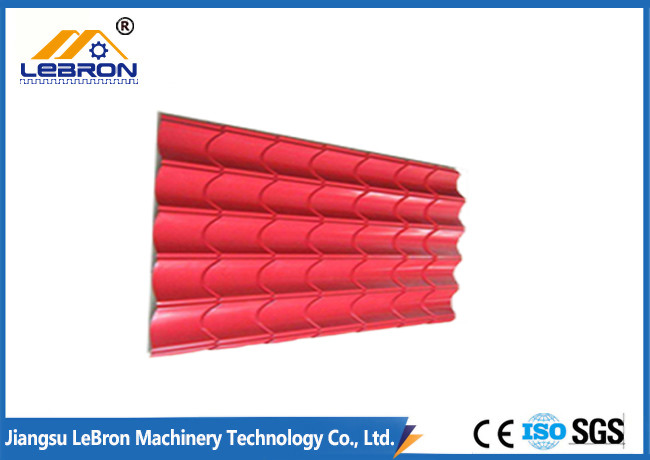

Color steel tile has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used. This machine is suit for the production of various kinds of color steel tiles.

LBM factory is producing high quality color steel tile roll forming machines. Most of the machines were exported to Thailand, Singapore India, Vietnam, Iran, Russia, Ghana, Tanzania, etc.

2. Detailed parameters of LBM-GTM-008 type color steel tile roll forming machine

Machine Specifications
Weight Approx 6000 Kg
Size 8 m*1.5m*1.2m (Length x Width x Height)
Color Main color: Blue & Yellow (or custom)

Suitable Raw Material
Material PPGI and PPGL Coils, Hot rolled & Cold rolled coil
Thickness 0.3-0.8mm
Coil width 1000mm, 1220mm, 1450mm
Yield Strength 235Mpa-550Mpa

Main Technical Parameters

Quantity of forming rollers stations 20
Diameter of forming rollers shafts 70 mm
Roll Forming Speed 10-16m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5 Kw
Electric voltage 380V 50HZ 3 Phase (or custom)

3. Main components of YX25-210-840 type color steel tile roll forming machine

4. Panel sketch

5. Service

6. Delivery

Jiangsu LeBron Machinery Technology Co., Ltd. (Brand Name: Lebron-Machinery) is a professional designer and manufacturer of Cold Roll Forming Machines. Founded in 2007, with over 10 years experience of in design and manufacture, now LBM is a leading and widely recognized manufacturer and exporter of the Cold Roll Forming Machines in Wuxi City, Jiangsu Province, China.

Founded in 2007, after over 10 years’ development, now, LBM company has factory and branch company employees over 130 people, total areas over 12000 square meters, plants areas over 10000 square meters. Registered capital 10 million RMB. Annual output value over 70 million RMB. The factory has 11-set advanced CNC production lines on-site, has 15 professional technicians, among them, there are 5 engineers with more than 20 years of experience.

LBM company is specialized in the production of various kinds of Cold Roll Forming Machines. The machine ranges covering Roofing Sheet Roll Forming Machine, Wall Panel Roll Forming Machine, Corrugated Roofing Sheet Roll Forming Machine, C/Z Purlin Roll Forming Machine, Floor Deck Roll Forming Machine, Sandwich Panel Roll Forming Machine, Metal Gutter Roll Forming Machine, Metal Downspout Roll Forming Machine, Door Frame Roll Forming Machine, Shutter Door Roll Forming Machine, Window Frame Roll Forming Machine, Storage Rack Roll Forming Machine, Structure Profiles Roll Forming Machine, Cable Tray Roll Forming Machine, Solar Strut Channel Roll Forming Machine, Highway guardrail roll forming machine, Car panel roll forming machine, etc.

LBM Company’s roll forming machines are widely used in the production of industrial products. With over 260 customer relationships, LBM sells to leading companies in a wide variety of industries. We service a multitude of industries with custom Cold Roll Forming Machines including Automotive parts, Vessel accessories, Decking & Panel, Garage Doors (including door skins and track), Window & Door Frame, Roofing, Siding, Purlins, Gutter, Soffit, Corner-bead, Fencing, Shelving and Racking, Construction materials, etc.

LBM constantly provides good quality machines to our clients with timely deliveries at the most competitive prices. Meantime, LBM has the people and experience to help you succeed with dedicated after-sales support, customer service, and technical expertise.
