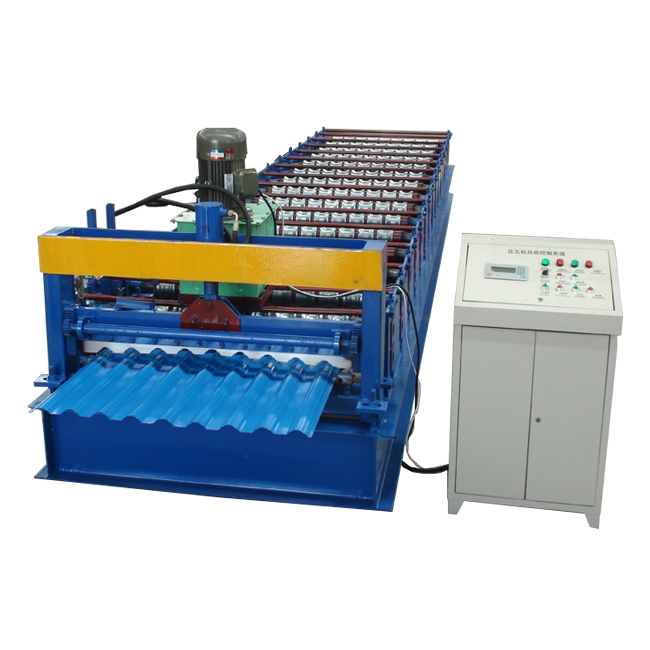

Automatic Control Corrugated Sheet Roll Forming Machine Hydraulic
Cut Main Power 7.5Kw
1. Technical Parameters
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | As ur need |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 15 stations |
| 4 | Shaft Diameter | 70 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# with 0.05mm chrome |
| 7 | Shaft material | 45# with 0.05mm chrome |
| 8 | Weight | 6.5 ton |
| 9 | length | 6.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 Tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
2. Product Description
This corrugated roofing sheet roll forming machine uses galvanized
steel sheet, colored armor plate or aluminum plate as the material
plate.
The products of it are used as the roof tile and wall panel outside
of building, to increase the beauty and durability of the roof tile
and wall panel.
This corrugated tile forming machine has no limit on processing
length; you can set several different data on the computer control
cabinet according to your own need. After pressing the button
"Confirm", the machine can produce the panel automatically
according to the set data. The molding plate surface smooth and not
easy to be marked when it is being stamped.
3. Our Services
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your
inquire will be replied in 24 hours.
4. FAQ
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour), then we can pick up you to factory(40min).
Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west
station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 12 mounts, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send
new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer
should pay the salary 100 USD/day.
5. Our service
1). Presale Service
We assist customers in well understanding the product information
like features, functions and applications and so on. As for the
detailed procuring information or drawings, our professionals will
first conduct a careful examination and then recommend the most
suitable machines or devise proper schemes for customers. We also
provide free samples if necessary.
2). After-Sale Service
a. 12 months warranty is provided.
b. Customers can send photos or samples for our confirmation once
the parts are damaged within the one year warranty. If the parts
are not damaged by wrong operation, we will reply to customers
within 48 hours and provide free parts for replacement. Besides,
for the parts out of commission and beyond the warranty, we only
charge for the basic costs of parts.
c. We regularly follow up the service condition of products, and
timely analyze and copy with the feedbacks. As for the disputes, we
will figure out effective actions to reach mutual satisfaction.
6. Picture
