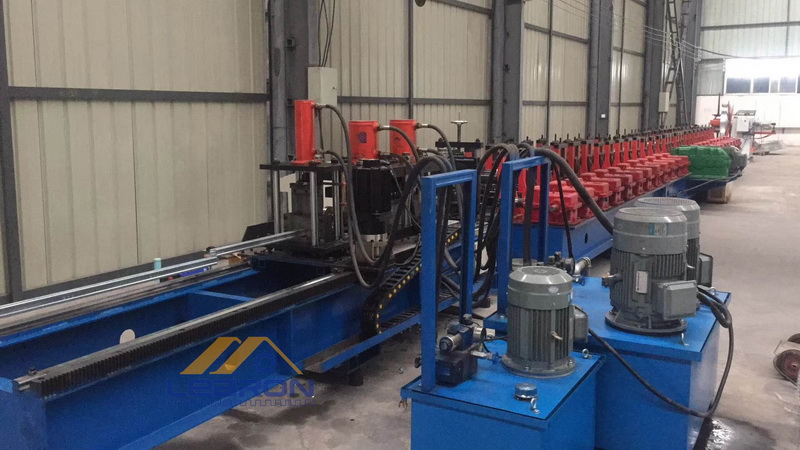

PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device

    Buy cheap PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device from wholesalers

    Buy cheap PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device from wholesalers
    • Buy cheap PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device from wholesalers
    • Buy cheap PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device from wholesalers
    • Buy cheap PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device from wholesalers
    • Buy cheap PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device from wholesalers

    PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device

    Ask Lasest Price
    Brand Name : Lebron Machinery
    Certification : ISO9001: 2008
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Delivery Time : 30-35 days
    Model Number : LBM-SCM-008
    Price : Negotiation
    Supply Ability : 25 Sets per Month
    • Product Details
    • Company Profile

    PLC Control Automatic Strut Channel Roll Forming Machine Hydraulic Cutting Device

    Hydraulic Cutting Device Strut Channel Roll Forming Machine PLC Control System


    1. Major Technical Parameters of strut channel roll forming machine

    No.Main parameter of strut channel roll forming machine
    1Machine Length10000*1000*2500mm
    2Weight6 Tons
    3Voltage380V/50HZ/3Phase (as customer’s request)
    4Main Power30KW
    5Forming Stations

    25 Stations

    6TypeGY160
    7Forming FrameDragon-Type, gearbox drive
    8Material of rollersGCr15
    9Material of shafts45# steel with tempering
    10Diameter of shaftsφ75mm
    11Max Feeding Width300mm
    14Max Feeding Thickness3.0mm



    2. Major Components of strut channel production line



    No.NameTypeQty. (Set)Motor Power (KW)Remark
    1DecoilerMT-30012.2
    2Roll Forming SystemGantry gearbox130
    3Hydraulic Punch & Cutting17.5
    4Run-out TableSL-300X40001
    5Electric Control Cabinet1
